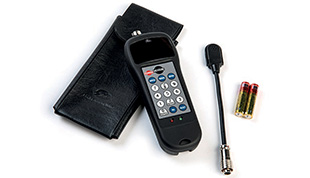

V-belts slipping or rolling over in pulley grooves? Synchronous belts stripping teeth or skipping teeth? Gates 550C Sonic Tension Meter can eliminate these problems.
Do you need to establish a specific drive belt tension for your machine applications? Then reach for the Gates 550C sonic tension meter and determine the degree of loads and
tension of your belt installations immediately and with utmost precision.
Applicable to a V-belt, a multi ribbed belt or a synchronous belt, the device analyses sound waves from the belt through the sensor and delivers you the accurate tension measurement without delay, which is essential for the optimum performance and reliability of your belt drives. Belt pretension data can be determined by using Gates DesignFlex™ Pro™ Drive design software, available at www.GatesAustralia.com.au/DriveDesign.
The Gates 550C sonic tension meter ensures a smooth user experience including an easier reading of data thanks to its high definition OLED display. The device is compact, convenient to use and precise.
Features:
- Suited for multi-ribbed, V and synchronous belts
- Measuring accuracy: +/- 1%
- Double display possible (Newton and/or Hz)
- Auto shutdown after 5 min of inactivity
- CE approved – RoHS compatible
- Auto gain control
- Compact model: 160 mm x 26 mm x 59 mm (H x D x W)
- 40 storage registers
- NEW OLED screen with optimised resolution
- IMPROVED frequency ranges:
- LOW (10-50 Hz),
- STANDARD (10-1000 Hz),
- HIGH (900-5000 Hz)

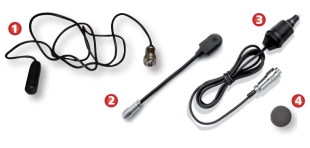

Optional Sensors:
- Standard Cord Sensor (7420-0206) (Included with 7420-0507)
- Flat Flexible Sensor (7420-0205). Bend to required shape for convenient, one-hand operation. (Replaces 7420-0204)
- Inductive Sensor (7420-0212) (Magnets included)
- Replacement Magnet (7420-1212)

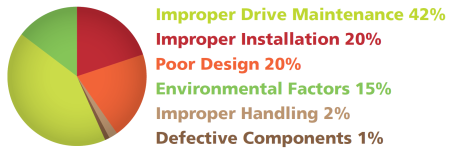

550C Sonic Tension Meter helps ensure belts are tensioned accurately. Incorrectly tensioned belts is a major contributor of the most common drive problems, improper installation and maintenance.
Quickly Design Industrial Synchronous and V-Belt Drives
This easy-to-use tool has a high-definition OLED display, making it simple to read the measurement, even in low-light areas.
The Sonic 350C is compact, convenient, and precise.
