ACCURATE AND CONSISTENT BELT TENSION MEASUREMENTS

Your belt drives rely on proper tensioning to perform optimally. Now, checking belt drive tension is easier than ever with the Gates 350C Sonic Tension Meter.

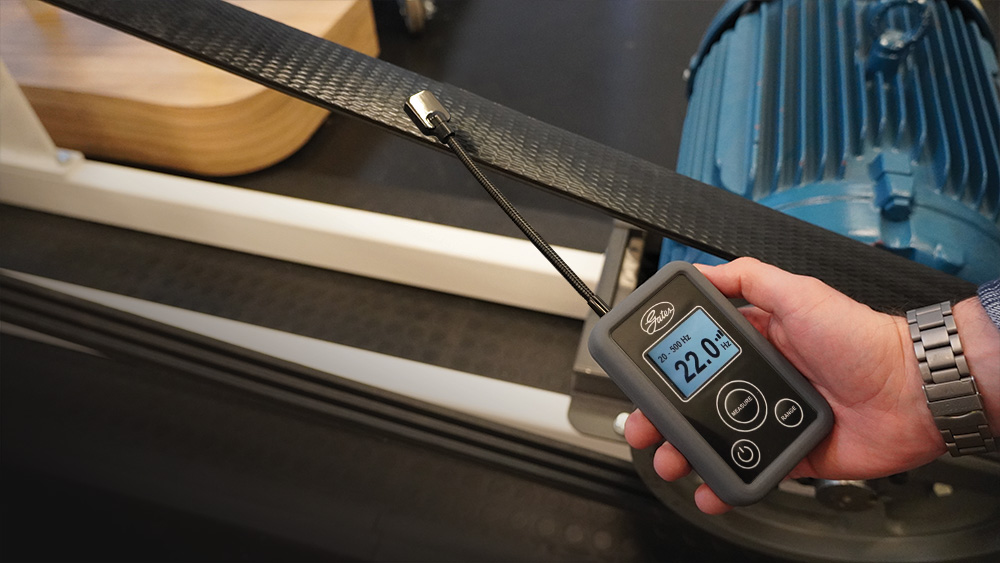

This new hand-held device delivers an accurate tension reading within seconds by analysing sound waves caused by strumming the belt. Compatible with V-belts, V-ribbed belts, and synchronous belts, the 350C offers three frequency ranges and a measuring accuracy of +/- 1%. Belt pretension data can be determined by using Gates Design Power™ drive design software.

This easy-to-use tool has a high-definition OLED display, making it simple to read the measurement, even in low-light areas. The Sonic 350C is compact, convenient, and precise.

FEATURES & BENEFITS:

• Suited for multi-ribbed, V and synchronous belts
• Measuring accuracy: +/- 1%
• Auto shutdown after 5 min. of inactivity
• Noise canceling microphone for improved accuracy
• Compact model: 120 mm x 27 mm x 75 mm (H x D x W)
• OLED screen with optimised resolution
• Frequency ranges: LOW (10-50 Hz), STANDARD (10-1000 Hz), HIGH (900-5000 Hz)
• Batteries: 2 x AAA
• Use and storage temperature range: -20°C to +70°C (free from condensation)

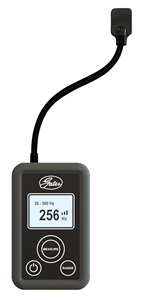

GATES 350C SONIC TENSION METER (PN 74200350)

Each standard package includes a meter with attached microphone and 2 AAA batteries

• 70 mm. arm length
• Range: 10 – 5.000 Hz IMPORTANT NOTE: Gates Sonic Tension Meter should not be used in explosive risk areas.

For more information on the 350C Sonic Tension Meter you can contact us HERE.
