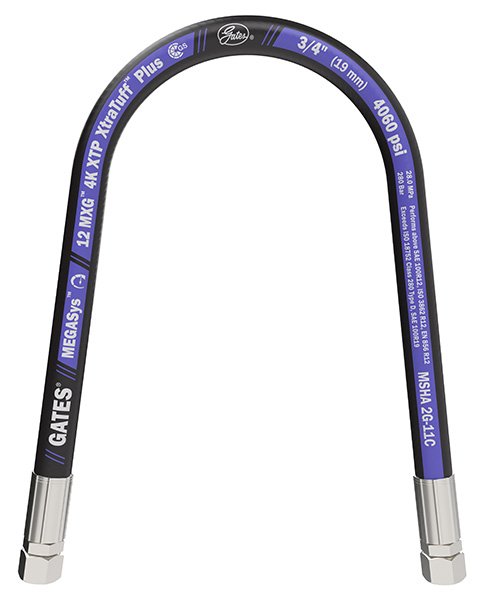

MegaSys™ MXG™ 4K Hydraulic Hose with XtraTuff™ Plus Cover

High-Pressure Performance Redefined!

Built with our proprietary wire-braid process technology, MegaSys MXG 4K hose is lightweight, highly flexible, and qualified to ONE MILLION impulse cycles — it’s a drop-in replacement for conventional spiral hoses.

Where others see a hose, we see a solution that can benefit our customers. Using materials science advancements, design expertise and processing technologies, we engineered a new
class of hydraulic hose that exceeds the pressure and performance of wire spiral constructions, but with the lower weight and flexibility driven by Gates wire-braid technology. The XtraTuff Plus abrasion resistant cover on MXG 4K hose offers improved ozone resistance, withstands operating temperatures up to 121°C and delivers exceptional durability to
power your most demanding fluid power applications.

Features & Benefits:

  • Proprietary application of materials science and processing technology
  • Exceeds performance criteria of ISO 18752 280DC, SAE 100R12, EN856 R12, and ISO 3862 R12; size -16 also rated for EN856 4SP
  • For inventory consolidation, also exceeds SAE 100R19
  • Certified MSHA, FRAS & MDG41
  • 1,000,000 cycle impulse life exceeds industry standards (2X spiral and 5X wire braid standards) with GS couplings
  • Impulse tested to the same parameters as Gates EFG4K spiral hose (pressure, temperature and bend radius)
  • Compact construction with excellent flexibility and lower force-to bend for faster and more ergonomic installation (force-to-bend is 40% better and OD is 8% smaller)
  • 30% lighter weight for easier handling and installation
  • Gates XtraTuff™ Plus cover comes standard on MXG, providing abrasion and ozone resistance
  • Utilises Gates GS GlobalSpiral™ couplings compatible with Gates Crimpers

Product Specifications:

  • STANDARD: Exceeds all criteria of ISO 18752 280DC and SAE 100R19; exceeds performance criteria of SAE 100R12, EN 856 R12, ISO 3862 R12 (Size -16 also exceeds EN 856 4SP performance requirements)
  • CONSTRUCTION: Black, oil resistant, synthetic rubber tube; two layers of braided, high-tensile steel wire reinforcements
  • COVER: Black, XtraTuff™ Plus abrasion resistant, ozone resistant, synthetic rubber; smooth cover
  • TEMPERATURE RANGE: -40°C to +121°C (-40°F to +250°F)

MXG™ 4K is now available from your local gates hydraulic distributor, to find your nearest distributor click HERE.
