Maintenance Kits


Optimum belt drive performance is not achieved via guess work, you need the right tools for the job. Our most popular Maintenance Tool Kit [GIBMAINT-3] allows any belt drive to be accurately installed and maintained.

It includes our premium 550C Sonic Tension Meter and EZ Align® Green laser alignment tool. The Belt Wear Gauges allow for quick V-belt pulley inspections. The aluminium tension plates can be installed on the drive or guard to ensure belt details and tensioning data are always on hand. Four other kit versions are available with slightly different components included to suit your requirements and budget.


MAINTENANCE KIT 1
Item Code - GIBMAINT-1

1 x Hard Carry Case with foam liner
1 x Gates 550C Sonic Tension Meter
1 x Gates AT-1 Laser Alignment Tool
1 x Gates 15kg Single Barrel Tension Tester
1 x Gates 30kg Double Barrel Tension Tester
1 x Gates Belt and Pulley Gauges
2 x Gates Aluminium Tension Plates
2 x Gates Tension Stickers
1 x Gates Steel Ruler
1 x Gates Measuring Tape
1 x Gates Pocket Tension Guide

MAINTENANCE KIT 3
Item Code - GIBMAINT-3

1 x Hard Carry Case with foam liner
1 x Gates 550C Sonic Tension Meter
1 x Gates EZ Align® Green Laser Alignment Tool
1 x Gates 15kg Single Barrel Tension Tester
1 x Gates 30kg Double Barrel Tension Tester
1 x Gates Belt and Pulley Gauges
2 x Gates Aluminium Tension Plates
2 x Gates Tension Stickers
1 x Gates Steel Ruler
1 x Gates Measuring Tape
1 x Gates Pocket Tension Guide

MAINTENANCE KIT 2
Item Code - GIBMAINT-2

Same as Kit 1 minus the 550C Sonic Tension Meter
MAINTENANCE KIT 3A
Item Code - GIBMAINT-3A

Same as Kit 3 with Inductive Sensor added
MAINTENANCE KIT 4
Item Code - GIBMAINT-4

Same as Kit 3 minus the 550C Sonic Tension Meter

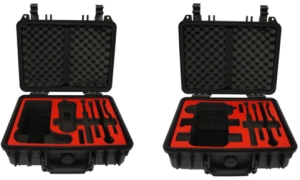

  Empty cases are also available to keep your existing tools safe and organised.
GATESK1 – Suits Maintenance Kit 1 & 2 components
GATESK2 – Suits Maintenance Kit 3, 3A & 4 components
