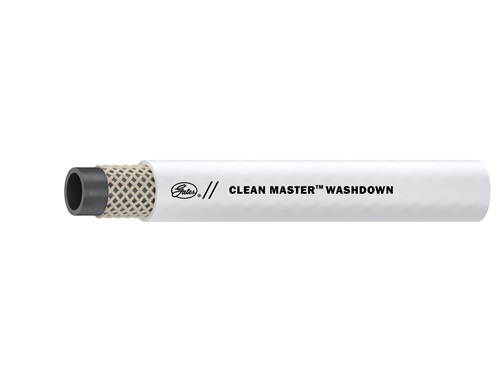

Formerly Creamery & Paper Mill Washdown Hose
(Specification 3213B, 3325T)
RECOMMENDED FOR: Cold and hot water up to 100°C where steam is injected into the water. Used for paper mill, food handling or processing plant washdown service requiring hose with a non-marking cover.
CAUTION: NOT RECOMMENDED FOR USE WITH STEAM.
TEMPERATURE: -29°C to +82°C continuous service. For nozzle only. -40°C to +100°C continuous service.
CONSTRUCTION: Tube: Type D (SBR). Black. For nozzle only.
Type P (EPDM). Black.
Reinforcement: Braided, high tensile synthetic textile cord. For nozzle only.
Synthetic, high tensile textile cord.
Cover: Type D (Natural Rubber). Gray with green stripe. For nozzle only.
Type P (EPDM). White. All sizes are perforated on plain end hose only.
Design Factor: 4:1
COUPLINGS: 1, 14, 15 or 75 Gates GLX® (For without nozzle only) or 82 Gates SS (for without nozzle only). Reference the Hose Coupling Section.
PACKAGING: 1/2": Packaged in 183m to 244m reels. Maximum 4 pieces. Minimum length 8m.
3/4" and 1": Packaged in 91m to 122m reels. Maximum 3 pieces. One length 8m to 15m. Max 2 lengths under 30m.
15m lengths (with nozzle): Packaged each length coiled and wrapped in polyethylene.
15m lengths (without nozzle): Packaged 15m coiled in a carton.
BRANDING: Continuous ink print label. Example: “Gates® Clean Master® Washdown 150 with Nozzle 200 psi (1.38MPa) WP Made in U.S.A.”
Continuous transfer label. Example: “Gates® Clean Master® Washdown 150 with Nozzle 150 psi (1.03MPa) WP Made in Mexico”
SPECIAL ORDER REQUIREMENTS: Special production runs require minimum order quantities of 7620 meters for plain end hose and 183 meters for 3/4" through 1 1/4" with nozzle.
REMNANT LENGTHS: None.
