Formerly Maverick™ Hose
RECOMMENDED FOR: Transfer of refined fuels (commercial gasoline and diesel fuel), oils and other petroleum products. Ideal for oilfield truck use.
CAUTION: Service life of transfer hoses can be extended by draining hoses after use. For bio-diesel and other alternative fuel applications, see Fuel Master® Xtreme™ 150SD (formerly Longhorn® AF). Petroleum transfer hoses may be used with all grades of bio-diesel only if the exposure is intermittent and the hose is drained between uses.
TEMPERATURE: -40°C to +82°C. Warning: Do not convey fuels over +49°C.

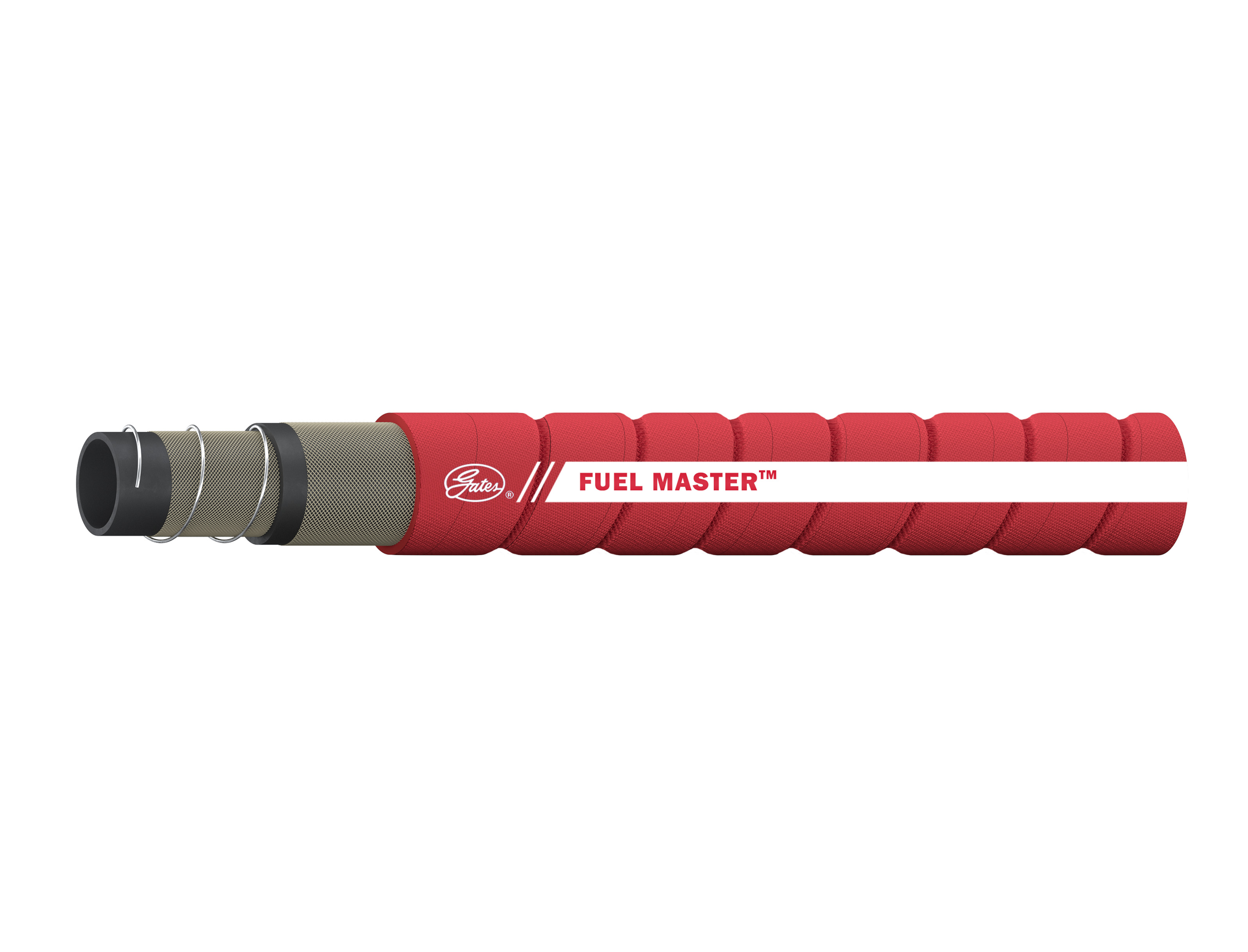

CONSTRUCTION: Tube: Type C (Nitrile). Black.
Reinforcement: Synthetic, high tensile textile with steel wire helix.
Cover: Type C2 (Modified Nitrile). Red corrugated with white spiral stripe.
Design Factor: 4:1
COUPLINGS: 7, 26, 49 or 78. (for ambient temperatures only). Reference the Hose Coupling Section.
PACKAGING: All lengths coiled and wrapped in polyethylene.
BRANDING: Continuous transfer label. Example: “Gates® Fuel Master® 100SD psi (.69MPa) WP Made in U.S.A.”
SPECIAL ORDER REQUIREMENTS: Special production runs require minimum order quantities of 122 meters per size. If a special transfer label is required, contact Gates Corporation for minimum quantity.
Specific cut lengths available through the Cut Length Program. Contact Customer Service for details.
REMNANT LENGTHS: Remnant lengths are sometimes available in popular sizes at a discount. Contact Gates Corporation for pricing, order requirements and availability.
STANDARDS: Tube: ARPM (Class A) High oil resistance.
