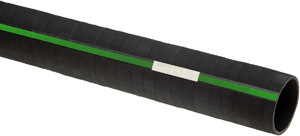

Green Stripe® Straight Coolant Hose


Stick Hose Designed for Demanding Heavy-Duty Coolant/Air Applications

Green Stripe Straight Coolant Hose

  • Two-ply bias fabric construction to maximise flexibility and strength
  • Resists “cold water leaks” due to advanced EPDM tube and cover that stay soft and pliable, even under adverse operating conditions
  • Exceeds SAE 20R1 Type EC (Class D-1 Tube, and cover, Standard Wall)
  • Cover marked in 2.5cm increments to facilitate approximate cut lengths, allows “custom-fit" installations
  • Engineered to resist electrochemical degradation – the leading cause of hose failure
  • Temperature rating: –40°C to +125°C
  • Packaging: 0.91 meter lengths

Note: For a maintenance free connection, use PowerGrip® SB Clamps.

 GREEN STRIPE® 2-PLY
STRAIGHT COOLANT HOSE
PART NO. SIZE   PART NO. SIZE
 24212 3/4" x 3ft    24238
 2 3/8" x 3ft
24214 7/8" x 3ft    24240
 2 1/2" x 3ft
24216 1" x 3ft    24242
 2 5/8" x 3ft
24218 1 1/8" x 3ft    24244
 2 3/4" x 3ft
24220 1 1/4" x 3ft    24246
 2 7/8" x 3ft
24222 1 3/8" x 3ft    24248
 3" x 3ft
24224 1 1/2" x 3ft    24250
 3 1/8" x 3ft
24226 1 5/8" x 3ft    24252
 3 1/4" x 3ft
24228 1 3/4" x 3ft   24256  3 1/2" x 3ft
24230 1 7/8" x 3ft   24260  3 3/4" x 3ft
24232 2" x 3ft    24264 4" x 3ft
24234 2 1/8" x 3ft    24272 4 1/2" x 3ft
24236 2 1/4" x 3ft

Caution: Do not use for fuel or oil transfer applications.
