Gates Belt Drive Design Software

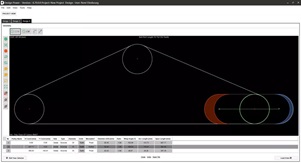

Design Multi-Point and Complex Serpentine Belt Drives

Save time and money using Gates Design IQ software for creating your multi-point and complex serpentine belt drives. It lets you design for stock and non-stock lengths and pulley sizes, and allows for an almost unlimited amount of sprockets and conditions. Start with a specific Gates product and enter your drive specifications.

You Can Use Design IQ To:

  • Calculate belt tension, belt length, shaft load, and more
  • Recommend installation tension
  • Offer drive geometry output
  • Point out principal contributing factors to flex-fatigue
  • Calculate belt widths or number of strands


Download Design IQ

Get Help Designing Your Drives

Speak to a Gates Product Application Engineer to get help designing the most effective V-belt or synchronous belt drives for your needs.
