APC-024 Coal Mining Dewatering Pump


New drive using Poly Chain® GT® Carbon™ belt to deliver required power transmission in only 90mm width.

End Market Industry
Coal Mining

Application
Dewatering Pump
150kW @ 1500rpm
Small Centre Distance required
Required Speed Ratio = 3:1 down

Original Components
Chain = 16B duplex roller chain
DriveR Sprocket = 32 Tooth
DriveN Sprocket = 32 Tooth 70mm wide

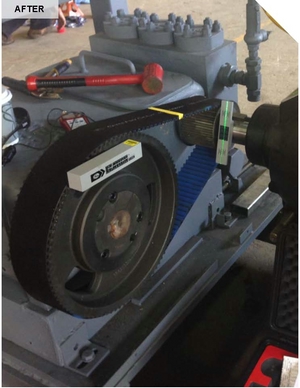

Coal Mine Poly Chain GT Carbon Pump

APC-024
See more at www.GatesAustralia.com.au/CaseStudies











New Drive Challenge
The customer required a compact drive for their application utilising standard products. 17 high performance V-belts or a 200mm non-standard width high strength PowerGrip® GT3® timing belt are needed to transmit the load over this short centre distance. Since these aren’t feasible or standard components Poly Chain® GT® Carbon™ was required.

Solution Description
Belt = 14MGT-1750-90 Poly Chain® GT® Carbon™
DriveR Sprocket = 30 Tooth
DriveN Sprocket = 90 Tooth

Poly Chain GT Carbon Belt Cutaway

Benefits of Gates Product

This Poly Chain® GT® Carbon™ belt drive is capable of transmitting the full 150kW in only 90mm wide, while being maintenance free and requiring no lubrication.

The customer continues to use Poly Chain® GT® Carbon™ for other applications due to its small size and large sprocket/speed range options.


Submitted by: Neil Thomson
