Powersport Recreational

G-Force™ Workhorse™ & Redline™ CVT Belts

Gates^® G-Force^™ is an entire family of superior CVT belts engineered for the most demanding conditions – providing an OE-Perfect Fit with matching shift curves & pulley speed ratios.

G-Force^™ drive belts are made in the USA, field-tested, and trusted within the toughest conditions to bring durability, simplicity, performance, and value to your off-road adventures.

The G-Force^™ CVT belt range comes in two variants:

G-Force^™ RedLine^™

Developed from the most advanced materials, extensively lab and field-tested, Gates^® G-Force^™ RedLine^™ CVT belts are engineered to handle the wildest rides required for the dunes, deserts, mountains, and race-day. Built to withstand extreme friction, severe compressive force, and excessive heat created from high-acceleration, frequent back-shifting, and heavy loads.

Delivers 75% greater dynamic axial stiffness on average, up to 50% lower speed losses and better recovery from temperatures up to 170°C (338°F) without power loss.
Best within extreme off-road environments: better acceleration, higher top speed, less speed ratio & energy loss
Greater heat resistance & recovery – even under severe duty cycles
Extremely fatigue resistant
Improved durability, crack & wear-resistance

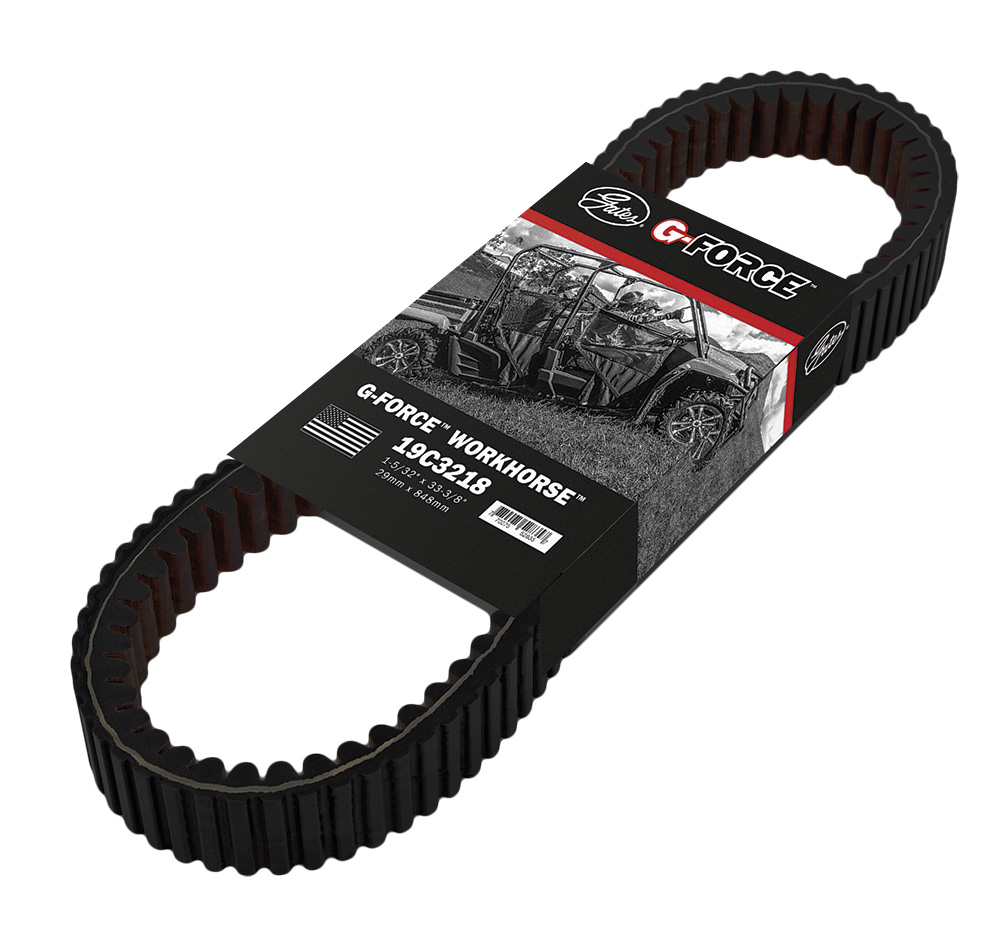

G-Force^™ Workhorse^™

Our newest Gates^® G-Force^™ WorkHorse^™ CVT belt, is engineered to handle the toughest tasks and trails.

Up to 2x the life of the G-Force Belt
45% increased heat tolerance
Power for hauling heavy loads across aggressive terrain
Improved durability, crack & wear-resistance

What's The Right CVT Belt For Me?

UTV/ATV/SNOWMOBILE VEHICLE TYPE
Low-range engine size, stock vehicle (≈150-399cc) G	G-FORCE^™ WORKHORSE^™ CVT BELT
Mid-range engine size, stock vehicle (≈400-799cc)
High-range engine size, stock vehicle (≈800-1100cc)	G-FORCE^™ REDLINE^™ CVT BELT G-Force RedLine was specifically designed for these newer vehicles and turbo options
Extremely high-range engine size, stock vehicle (up to 1300cc)
Extensive aftermarket vehicle/engine modifications/turbo-charging

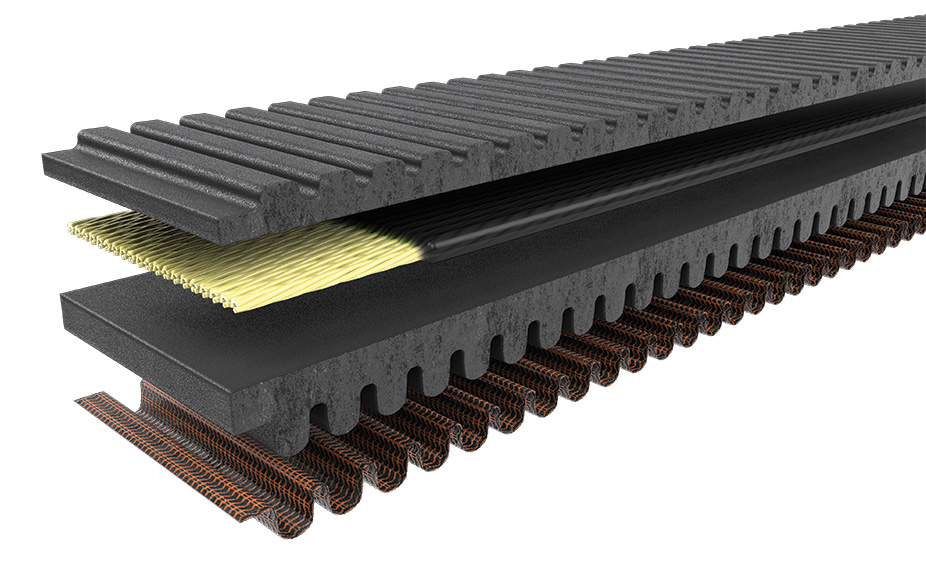

Gates^® Innovative Construction:

High Tensile Aramid Cord
Maximises acceleration, shock load resistance, and extreme fatigue resistance
G-FORCE REDLINE^™ & G-FORCE WORKHORSE^™

Aramid Fiber-Loaded Ethylene Elastomer
Maximum stiffness & heat resistance for higher loads, higher peak torque, less heat fade, and less speed loss
G-FORCE REDLINE^™ & G-FORCE WORKHORSE^™

Specially Formulated Adhesion Gum
Extends belt service life

Trapezoidal Top Notch with Rounded Bottom Cog
Delivers exceptional flexibility, heat dissipation & efficiency

Fabric Cog Jacket
Smooth shifting & higher abrasion resistance
G-FORCE REDLINE^™
