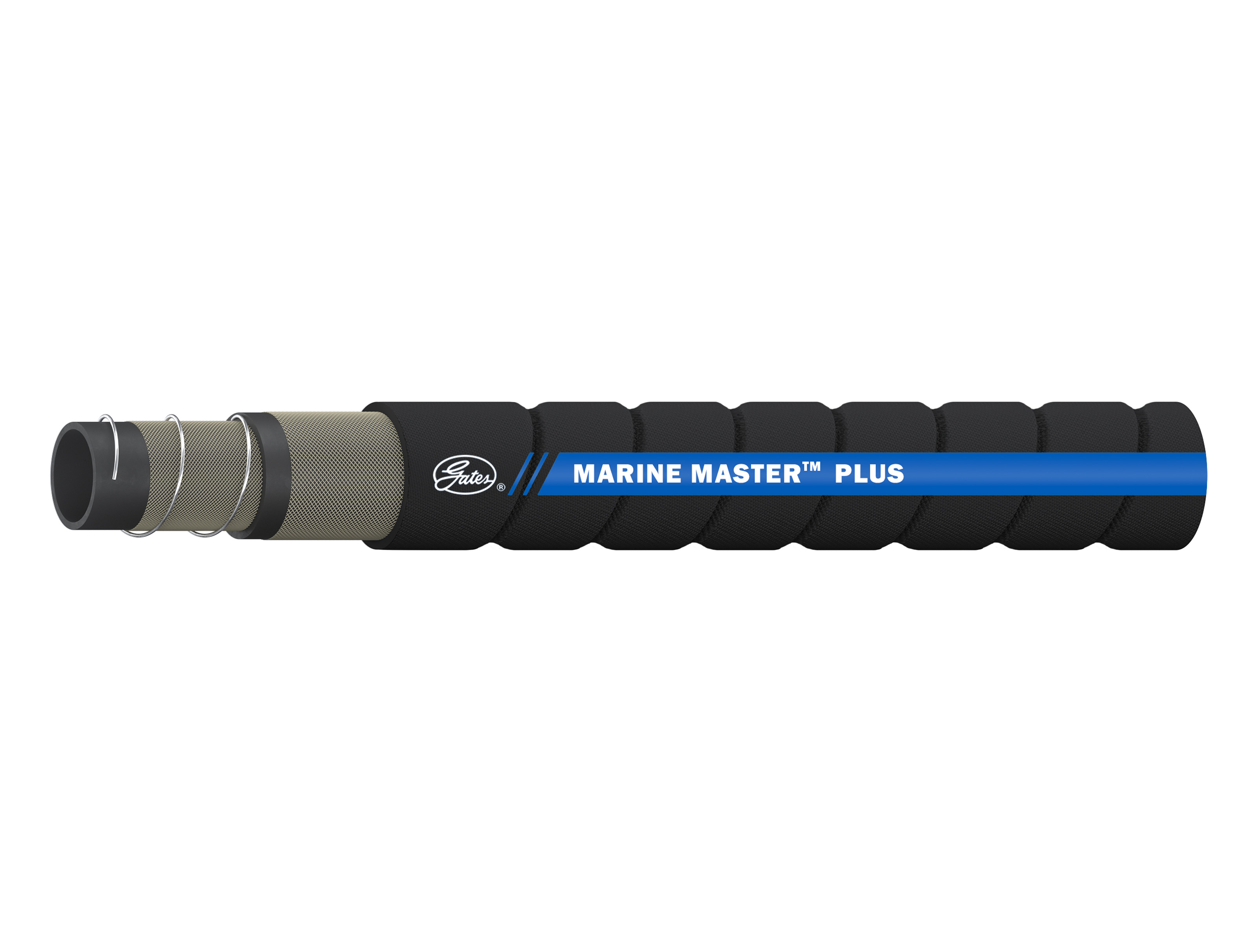

Formerly 4684CF Wet Exhaust Corrugated Hose

(Specification 4684CF)

RECOMMENDED FOR: Marine wet exhaust and general purpose applications. Suitable for coolant lines where tight bends are required.

TEMPERATURE: -40°C to +100°C continuous service.

CONSTRUCTION: Tube: Type C (Nitrile). Black. Oil and heat resistant.
Reinforcement: Synthetic fabric with built-in wire.
Cover: Type A (Neoprene). Black with red spiral stripe. Oil and heat resistant.
Design Factor: 4:1

PACKAGING: 1", 1 1/4", 1 3/8", 1 1/2", 1 5/8", 1 7/8": Packaged 5 each 3m coils in a carton.
3 1/2" through 6": Packaged in straight lengths in woven fiber.
All other sizes: Packaged 3m per carton.

BRANDING: Continuous transfer label every 3 meters. Example: “Gates^® Marine Master^® Plus^™ Wet Exhaust (15-100)SD 2 Inch Made in U.S.A.”

SPECIAL ORDER REQUIREMENTS: For enlarged or straight ends, contact Gates Corporation for pricing.
Special production runs require minimum order quantities of 61 meters per size. Lengths can be as short as 0.3 meters, but minimum billing is for 3 meters.

REMNANT LENGTHS: None.

STANDARDS: Meets requirements of SAE 20R2, SAE 20R5, SAE J2006.
Tube: ARPM (Class B) Medium oil resistance.
Cover: ARPM (Class C) Limited oil resistance.
