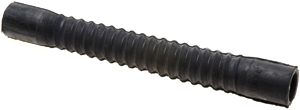

Gates® Vulco-Flex® II Hose Will Bend in Almost Any Direction
It easily replicates the angles and planes of a wide variety of expensive original equipment coolant hose, for quick and easy replacement.
- Improved sealing surface for greater leak resistance and increased flexibility for easier installation
- Heat and ozone resistant cover
- Rated for SAE 20R5 Class D-2 performance
- High temperature rating up to +125°C
| PART NO. |
I.D. INCHES (mm) |
LENGTH INCHES (mm) |
PART NO. |
I.D. INCHES (mm) |
LENGTH INCHES (mm) |
| 25150 |
1 1/8 (29) |
12 (305) |
25384 |
1 3/8 (35) |
25 (635) |
| 25152 |
1 1⁄8 (29) |
15 (381) |
25409 |
1 3/8 (35), 1 1⁄2 (38) |
26 (660) |
| 25154 |
1 1⁄8 (29) |
18 (457) |
25428 |
1 3/8 (35), 1 5/8 (41) |
17 (432) |
| 25157 |
1 1⁄8 (29) |
23 (584) |
25472 |
1 1⁄2 (38) |
8 (205) |
| 25180 |
1 1⁄8 (29), 1 1⁄4 (32) |
19 (483) |
25473 |
1 1⁄2 (38) |
10 1⁄2 (265) |
| 25249 |
1 1⁄4 (32) |
7 1⁄ 2(190) |
25474 |
1 1⁄2 (38) |
12 (305) |
| 25250 |
1 1⁄4 (32) |
9 1⁄2 (240) |
25476 |
1 1⁄2 (38) |
14 (356) |
| 25251 |
1 1⁄4 (32) |
13 (330) |
25477 |
1 1⁄2 |
15 1⁄2 (394) |
| 25252 |
1 1⁄4 (32) |
15 (381) |
25478 |
1 1⁄2 (38) |
17 (394) |
| 25253 |
1 1⁄4 (32) |
17 (432) |
25480 |
1 1⁄2 (38) |
20 (508) |
| 25254 |
1 1⁄4 (32) |
18 1⁄2 (470) |
25482 |
1 1⁄2 (38) |
22 (559) |
| 25255 |
1 1⁄4 (32) |
20 (508) |
25484 |
1 1⁄2 (38) |
25 (635) |
| 25257 |
1 1⁄4 (32) |
23 (584) |
25487 |
1 1⁄2 (38) |
30 (762) |
| 25260 |
1 1⁄4 (32) |
26 1/2 (673) |
25490 |
1 1⁄2 (38) |
35 (889) |
| 25262 |
1 1⁄4 (32) |
30 (762) |
25499 |
1 1⁄2 (38) |
48 (1219) |
| 25265 |
1 1⁄4 (32) |
35 (889) |
25526 |
1 1⁄2 (38), 1 3⁄4 (44) |
13 1⁄5 (335) |
| 25269 |
1 1⁄4 (32) |
41 (1041) |
25527 |
1 1⁄2 (38), 1 3⁄4 (44) |
15 (381) |
| 25284 |
1 1⁄4 (32), 1 3⁄8 (35) |
26 (660) |
25528 |
1 1⁄2 (38), 1 3⁄4 (44) |
16 1⁄2 (419) |
| 25300 |
1 1⁄4 (32), 1 1⁄2 (38) |
12 (305) |
25530 |
1 1⁄2 (38), 1 3⁄4 (44) |
20 (508) |
| 25302 |
1 1⁄4 (32), 1 1⁄2 (38) |
15 1⁄2 (394) |
25532 |
1 1⁄2 (38), 1 3⁄4 (44) |
22 (559) |
| 25305 |
1 1⁄4 (32), 1 1⁄2 (38) |
19 1⁄2 (495) |
25535 |
1 1⁄2 (38), 1 3⁄4 (44) |
27 (686) |
| 25307 |
1 1⁄4 (32), 1 1⁄2 (38) |
23 (584) |
25582 |
1 1⁄2 (38), 2 (51) |
22 (559) |
| 25309 |
1 1⁄4 (32), 1 1⁄2 (38) |
26 (660) |
25804* |
1 1⁄2 (38) |
19 3/4 (505) |
| 25311 |
1 1⁄4 (32), 1 1⁄2 (38) |
29 (737) |
25806* |
1 1⁄2 (38) |
23 1/8 (589) |
| 25321 |
1 1⁄4 (32), 1 1⁄2 (38) |
44 (1118) |
25808* |
1 1⁄2 (38) |
25 5/8 (650) |
Note: Gates® recommends replacing clamps each time a new coolant hose is installed.
Caution: Do not use for fuel or oil transfer applications.
