APC-017 Roll Forming Machine Drive Conversion

Roll forming machine replaces high maintenance roller chain drives with zero backlash maintenance free Poly Chain® GT Carbon™ drives.

End Market Industry
Metal Forming

Roll forming machine
7.5kW @ 50rpm

Original Components
Chain = 16B simplex roller chain
DriveR Sprocket = 36 Tooth
DriveN Sprocket = 36 Tooth x 2
Idlers = 16 Tooth x 3 - backside

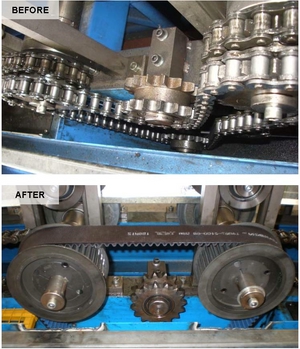

Poly Chain GT Carbon Roll Forming Machine

See more at www.GatesAustralia.com.au/CaseStudies

The roller chain was failing due to shock loading and elongation, requiring replacement every 2 months. This was the highest contributor to lost production in factory.

The idlers were being used to help cope with drive backlash.

Solution Description
Belt = 14MGT-2100-68 Poly Chain® GT™ Carbon™
DriveR Sprocket = 44 Tooth
DriveN Sprocket = 44 Tooth x 2
Idlers = Not required

Poly Chain GT Carbon Belt Cutaway

Benefits of Gates Product

The machine has operated for the past 24 months using the one Poly Chain® GT Carbon™ belt.

No maintenance or retensioning has been required.

No production time has been lost in last two years due to this upgrade.
