APC-008 Primary Crusher Drive Design

Poly Chain® GT Carbon™ drive delivers a cost effective maintenance free and compact solution for crusher.

End Market Industry
Sugar Cane Processing

Primary Crusher
160kW @ 1440rpm
Required Centre Distance = 1300mm
Required Speed Ratio = 5.33:1 down

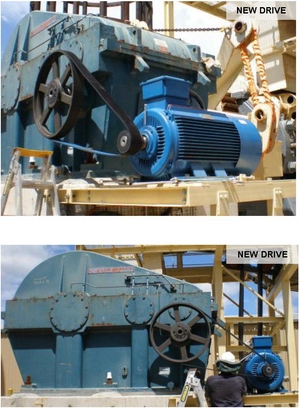

Sugar Cane Processing Poly Chain GT Carbon Crusher

See more at www.GatesAustralia.com.au/CaseStudies

New Drive Challenge
High efficiency was needed to keep power/operating costs as low as possible.

The new drive required a higher than normal speed ratio, a V-belt drive was not considered suitable. A V-belt drive also requires over 200mm width, adding extra and unnecessary load to the bearings

Solution Description
Belt = 14MGT-4326-90 Poly Chain® GT™ Carbon™
DriveR Sprocket = 36 tooth
DriveN Sprockets = 192 tooth

Belt Width = 90mm

Poly Chain GT Carbon Belt Cutaway

Benefits of Gates Product

The Poly Chain® GT Carbon™ drive offers up to 99% efficiency. At best, V-belts typically reach 97% efficiency.

The 90mm wide belt is much more compact than an equivalent V-belt option keeping the loads close to bearings.

After 18 months of ongoing use, no maintenance or downtime has been required, delivering higher productivity for the plant.

Submitted by: NeilThomson
