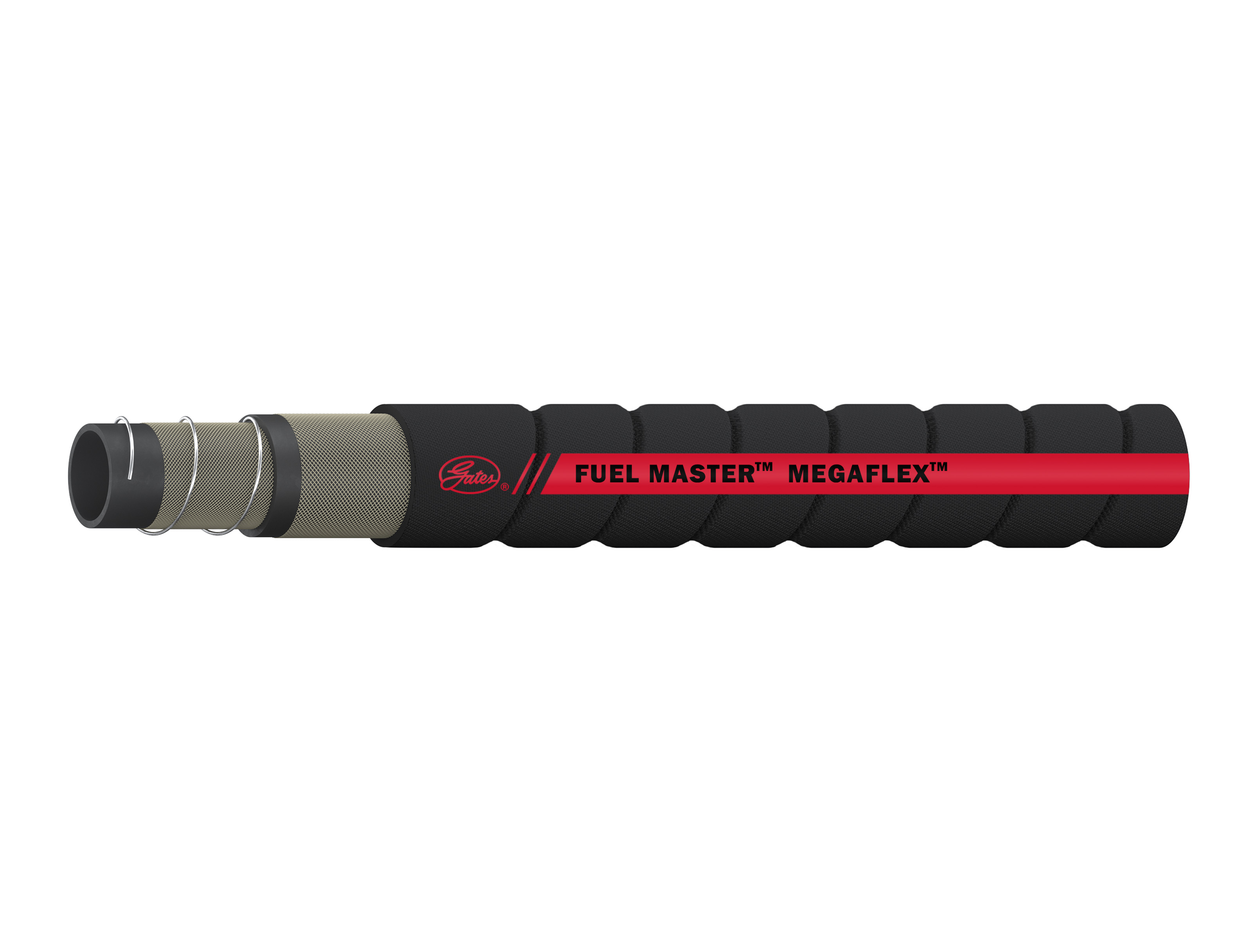

Formerly Petroleum Drop 150SD MegaFlex® Hose
(Specification 4688RF Maximum Flexibility)
RECOMMENDED FOR: Transfer of commercial gasoline, diesel fuels, oils and other petroleum products including bio-diesel, bio-diesel blends, ethanol and ethanol blends. It is ideal for tank truck, terminal loading and in-plant operations and oil field service truck use where a super flexible, maximum kink resistant fuel transfer hose is needed. Hose life can be extended by draining hose after use.
TEMPERATURE: -34°C to +82°C continuous service.
CONSTRUCTION: Tube: Type C (NBR). Black
Reinforcement: Synthetic, high tensile textile with dual wire helix.
Cover: Type C2 (Modified Nitrile). Red corrugated with black spiral stripe.
Design Factor: 4:1
COUPLINGS: 7, 26, 49 or 73. Crimp Sleeves (78) can be used with cam and groove type stems (49) at temperatures below 52°C. Reference the Hose Coupling Section.
PACKAGING: All lengths coiled and wrapped in polyethylene.
BRANDING: Continuous transfer label. Example: “Gates® Fuel Master® Xtreme™ 150SD MegaFlex® 150 psi (1.03 MPa) Made in USA.”
SPECIAL ORDER REQUIREMENTS: Special production runs require minimum order quantities of 122 meters. If a special transfer label is required, contact Gates Corporation for minimum quantity and details.
Specific cut lengths available through the Cut Length Program. Contact Customer Service for details.
REMNANT LENGTHS: Remnant lengths are sometimes available in popular sizes at a discount. Contact Gates Corporation for pricing, order requirements and availability.
STANDARDS: Tube: ARPM (Class A) High oil resistance.
