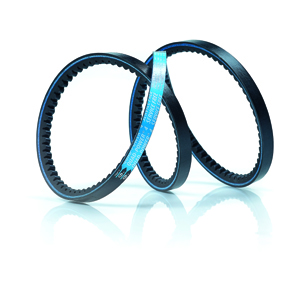

Quad-Power® 4


NOW 100% SERVICE AND TROUBLE FREE.

Gates Quad-Power® 4 V-belts are constructed with the most advanced technology available today. Our new generation of EPDM belts are designed for longer service life eliminating costly downtime for re-tensioning, repair and replacement.

Quad-Power® 4 V-belts bring you:
› Greater efficiency
› Less downtime
› Fewer replacements
› Higher performance
› Wider temperature range

MAINTENANCE FREE V-BELTS. NO RE-TENSIONING REQUIRED!

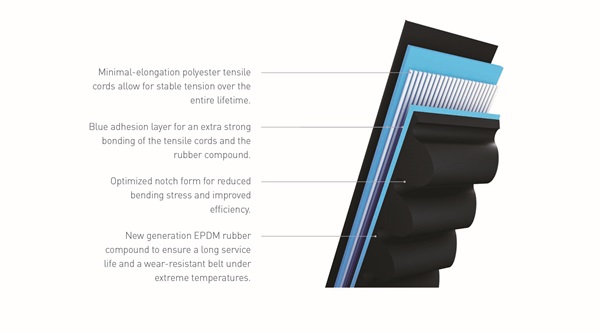

By using innovative minimal-stretch cord technology, Gates has designed the industry‘s first raw edge zero-maintenance V-belt. Unlike conventional belts, the Quad-Power® 4 raw edge V-belt does not suffer from severe tension decay in the first hours after installation. So no run-in period nor any re-tensioning are required. Imagine how convenient this is for difficult-to-reach belt drives. No re-tensioning means no machine or production downtime. The new Quad-Power® 4 service-free V belts reduce downtime costs for maintenance and plant engineers.

TENSION STABLISATION

V-belts must be at optimal tension to perform efficiently. Incorrect belt tension does not only lead to inefficient power transmission but also to premature belt wear and failure. Gates new generation of V-belts are specifically designed to maintain stable tension over their entire lifetime without the need for periodic re-tensioning. With Quad Power
® 4 belts fewer replacements need to be carried out, saving again on downtime and material costs


NEW MATERIAL. MORE BENEFITS.

Back in 2009 already, Gates pioneered with a Quad-Power® V-belt range featuring advanced EPDM rubber resulting in a new standard for V-belts with a considerably longer service life than conventional belts. Today, Gates has further optimised the EPDM rubber compound and is the first to add a new and innovative cord design that resists stretch better than ever. Gates Quad-Power® 4 belt is the industry’s first service-free raw edge V-belt that guarantees greater efficiency and lower costs

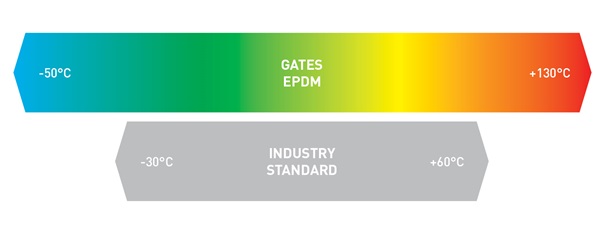

 LONGER LIFE AT EXTREME TEMPERATURES

The second generation of EPDM V-belts from Gates have the widest temperature range in the market. The Quad-Power® 4 belt maintains its exceptional performance in extreme cold conditions as low as -50°C. The newly formulated EPDM rubber material resists hardening to avoid cracking in temperatures up to +130°C making the Quad-Power® 4 belt the ideal solution for hot air HVAC applications or other high temperature environments.

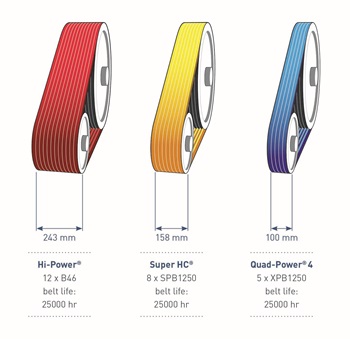

THE SOLUTION FOR COMPACT DRIVES

The high-grade construction provides the belt with a much higher power density than classical V-belts,allowing for a more compact drive design and resulting in reduced drive width, weight and costs. Furthermore, the Quad-Power
® 4 features a specially engineered moulded notch shape that reduces bending stresses. Consequently, it shows improved flexibility for increased performance on small pulley diameters.The exceptional flexibility also gives the belt excellent reversed bending properties when backside idlers are used.

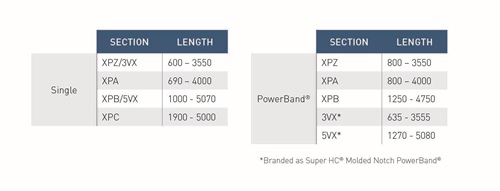

BELT RANGE AND SIZES

A demanding drive? Harsh conditions? The Quad-Power® 4 family of belts has a solution for all of your belt drive problems. This service-free belt is not only available in every popular size as single belt, but also in the sturdy PowerBand® construction for extremely high shock-loaded or vibration-prone drives.
