PowerGrip® GT3 Belts


HTD belts not strong enough? After a more efficient drive than V-belts? Need a compact, high precision drive? Hazardous explosive areas requiring a static conductive rated belt? Think PowerGrip® GT3 synchronous belts.

  • 5% energy savings over V-belts
  • 99% efficiency for life of the drive
  • Cut maintenance & downtime
  • No stretch
  • No lubrication
  • Rated from -35°C to 100°C
  • Static Conductive (ISO 9563)
  • 8MGT & 14MGT operates on HTD Sprockets
PowerGrip® GT3 8MGT and 14MGT pitches are standard static conductive to ISO 9563 and can be used in hazardous explosive areas.

They can also be supplied in a silicone-free construction and are therefore ideal for painting processes. As contamination risks are excluded, it is the ideal belt for the automotive industry.

Custom PowerGrip® belts can also be made to your requirements. Alternative material tensile cords, various rubber compounds and extra backings are just some of the options.

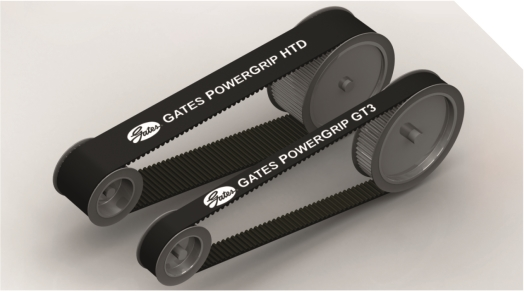

  At least 200% capacity over HTD belts means you can halve your drive width using PowerGrip® GT3 belts.

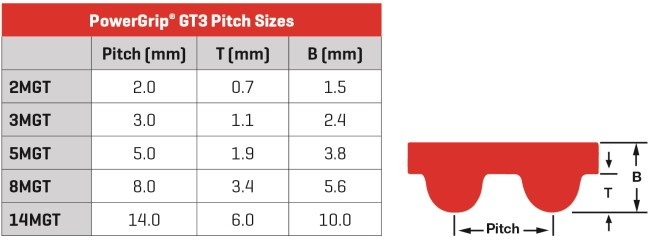

PowerGrip® GT3 belts are available in 2, 3, 5, 8 & 14mm pitch sizes. For more details please download the Belt Data & Length pages (below).
(Unitta GT & 8YU profile belts also available on request)

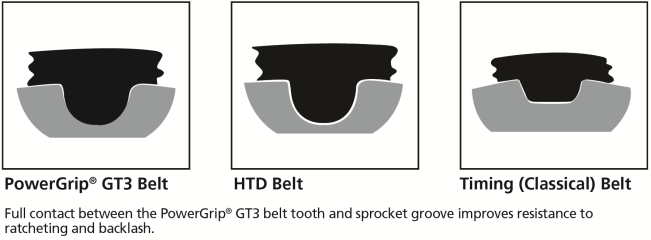

TOOTH/GROOVE CONTACT COMPARISON
