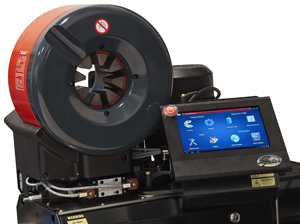

GC32TSi™ Crimper


Innovative new smart crimper includes all the necessary tools and information on-board to crimp factory-quality hose assemblies.

iCrimper
The new GC32TSi™ crimper includes eCrimp™ data, a conversion calculator, user’s manual, service log, as well as diagnostic videos and documents. The crimper also offers advanced functionality to assist the operator in building factory-quality assemblies, like automatic spring-back compensation, precision crimp diameter measurement, machined die retention plates with a simple die loading system, and a self-lubricating crimper head*. The GC32TSi™ crimper provides the confidence that every single hose assembly produced on this machine meets Gates stringent crimping specifications.
  • Select hose and couplings to be crimped on control panel. Images of these components will then be displayed on tablet screen along with required dies.
  • Precision crimps without looking up data, adjusting crimper settings or manually measuring final crimp OD.
  • After crimp is complete, the crimp OD is automatically measured and displayed on screen.
  • Crimper will not fully retract until the proper crimp OD has been achieved.
  • Crimper head ratchets a few degrees after each retract to re-distribute grease.
  • Controller is updated where wireless internet is available, or via thumb drive.
  • Tracks number of crimps and when through data logging, as well as machine maintenance.
  • Rear-mounted camera ensures coupling is in full contact with dies prior to crimping.
SPECIFICATIONS:
Dimensions: 24" high by 24-1/2" wide by 16-1/2" deep
Weight: 660 lbs.
Power Source: 230V, 50-60Hz, single phase and 16 amps
Capability: 1/4" to 2" hose with standard die sets
3/16" (pilot line) and 2-1/2" (return line) hose with optional die sets
Stand (Optional): 25-1/2" high by 31-3/4" wide by 16-1/2" deep (height adjustable)

Rack and stand sold separately
*Patent pending
