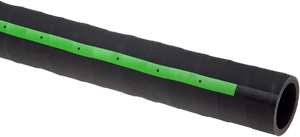

Green Stripe® 4-Ply Coolant Hose


For Severe Operating Conditions Found on Stationary Engines, Construction Equipment and Off-Road Vehicle Applications

Nitrile tube specially compounded to handle common coolants and additives.

Green Stripe 4-Ply Coolant hose

  • Four-ply woven, heavy-duty fabric reinforcement
  • Neoprene cover resists heat, abrasion and oil
  • Handles higher temperatures and resists petroleum additives
  • Exceeds SAE 20R1 (Class B Tube, Class C Cover, Heavy Wall)
  • Reduces water loss from water permeating the hose wall and cover, a distinct advantage over silicone
  • Engineered to resist electrochemical degradation – the leading cause of hose failure
  • Temperature rating: –40°C to +100°C, intermittent to 125°C
  • Packaging: 0.91m lengths, 1 each

GREEN STRIPE® 4-PLY COOLANT HOSE
 PART NO. SIZE
24428  1 3/4" x 3ft
24430 1 7/8" x 3ft
24432 2" x 3ft
24434 2 1/8" x 3ft
24436 2 1/4" x 3ft
24438 2 3/8" x 3ft
24440 2 1/2" x 3ft
24442 2 5/8" x 3ft
24444  2 3/4" x 3ft
24446 2 7/8 x 3ft
24448 3" x 3ft
24450 3 1/8" x 3ft
24452  3 1/4" x 3ft
24456  3 1/2" x 3ft
24458  3 5/8" x 3ft
24460 3 3/4" x 3ft
24464  4" x 3ft
24480  5" x 3ft

Caution: Do not use for gasoline or diesel transfer applications.
