APC-011 Extruder Drive New Drive Design


Poly Chain® GT® Carbon™ used to transmit high power in a very narrow width for a plastic extruder drive.


End Market Industry

Plastic Industry

Application
Plastic Extruder
150kW @ 990rpm

A high capacity belt drive was required for a high power plastic extruder. The challenge was to transmit this power, but only a very narrow space was available and the shaft lengths were quite short.

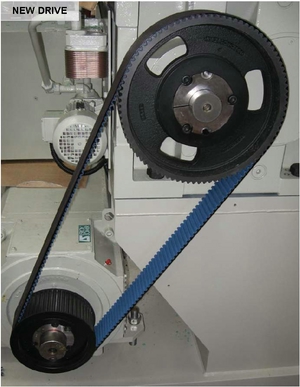

Plastic Extruder Poly Chain Drive

APC-011
See more at www.GatesAustralia.com.au/CaseStudies

New Drive Challenge
This application would require 30 standard SPB V-belts (586mm wide) with the same diameter pulleys as the final Poly Chain® GT® Carbon™ solution (90mm wide).

Even a high performing HTD timing belt would need to be 170mm wide with sprockets twice the diameter to transmit this load.

An ultra-high power density belt drive was needed.


Solution Description
Belt = 14MGT-2660-90 Poly Chain® GT® Carbon™
DriveR Sprocket = 38 Tooth
DriveN Sprocket = 90 Tooth


Poly Chain GT Carbon Belt Cutaway

Benefits of Gates Product

The Poly Chain® GT® Carbon™ belt can transmit the 150kW in only 90mm wide, unlike any other product on the market.


Submitted by: Gene Halden
